Acoustech 7.1 PL-980-12 System

Name: Acoustech 7.1 PL-980-12 System
Brand: BIC America
SKU: 7.1 PL-980-12

A coordinated speaker system for movie night.

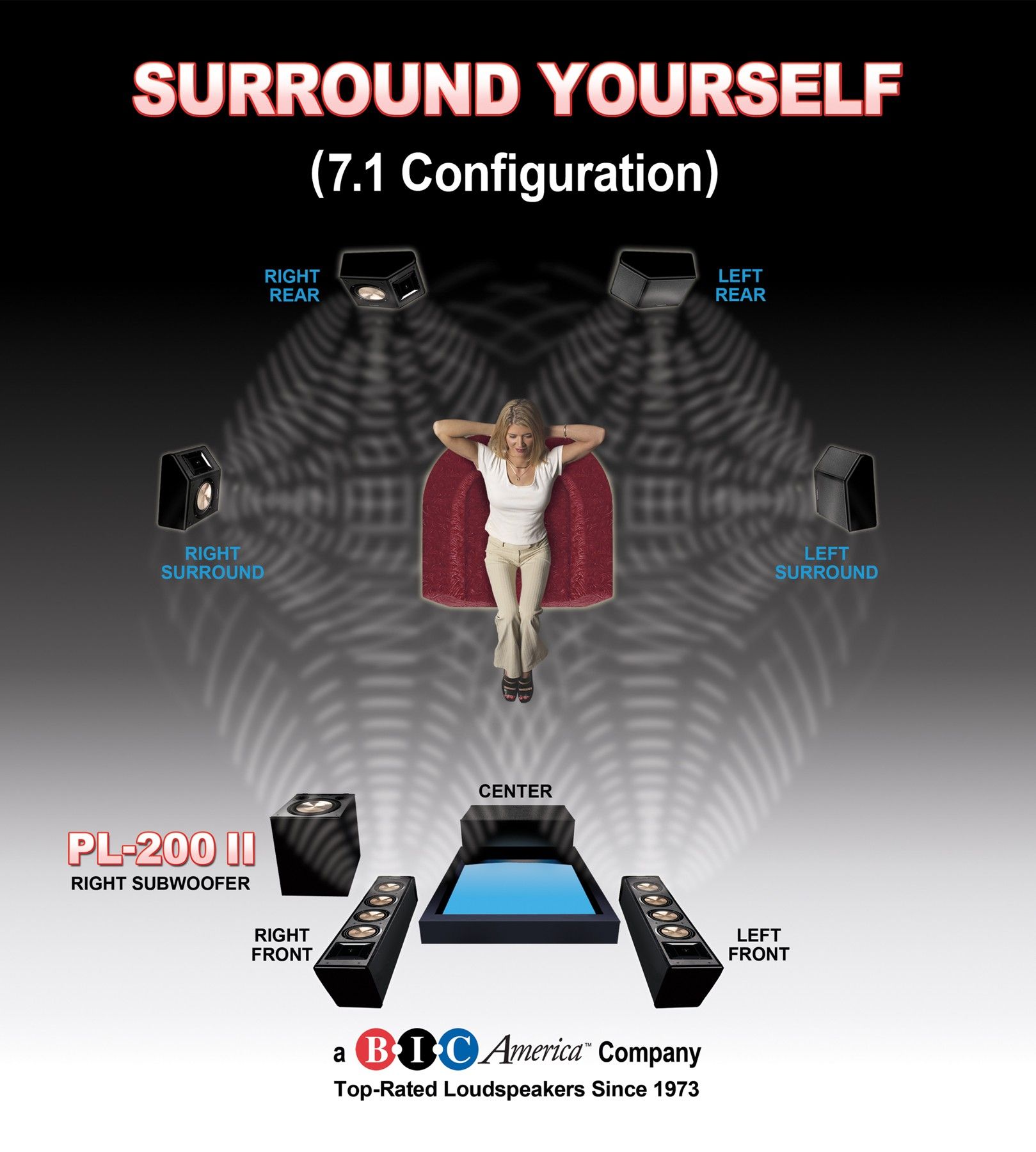

A coordinated home theater configuration with 1 PL-980 Left and 1 PL-980 Right, 1 PL-28II Center Speaker, 2 Pair PL-66 Bookshelf/Surround Speakers, 1 PL-200 II Subwoofer. See the component specifications below to plan your room and receiver connections.

Contact BIC America to confirm availability of this configuration.

$3499 MSRP / system

Full specifications ↓

The details

Know your speaker.

The specifications that help you plan your system.

Acoustech 7.1 PL-980-12 Systemspecifications
1 PL-980 Left and 1 PL-980 Right / Design	Three-way, six-driver tower speaker.
1 PL-980 Left and 1 PL-980 Right / Frequency Response	22Hz-23kHz
1 PL-980 Left and 1 PL-980 Right / Sensitivity	98dB
1 PL-980 Left and 1 PL-980 Right / Drivers	Two high power screen pressed long fiber 8″ active woofers, two 8″ passive woofers, one enclosed 5″ midrange, and one 6 1/2″ mid/high frequency aluminum dome horn with neodymium magnet.
1 PL-980 Left and 1 PL-980 Right / Features	Gold-Plated Binding Posts
1 PL-980 Left and 1 PL-980 Right / Recommended Power	10-300 watts per channel RMS, 750 watts peak power
1 PL-980 Left and 1 PL-980 Right / Impedance	Nominal 8 ohms
1 PL-980 Left and 1 PL-980 Right / Dimensions	47″H x 12 1/2″W x 11 5/8″D, Carton Dimensions: 17W x 15D x 51H
1 PL-980 Left and 1 PL-980 Right / Weight	60 lbs. (27kg.)
1 PL-980 Left and 1 PL-980 Right / Warranty	Extended 8 Year parts (excludes sustained cosmetic damages)
1 PL-980 Left and 1 PL-980 Right / Recommended Placement	Front of Speaker 18″ – 36″ from front of speaker to wall behind speaker. Typical placement 24″ from front of speaker to wall behind speaker. Placement preference may vary with room size, room damping, and personal sound preferences.
1 PL-28II Center Speaker / Design	Two-way center speaker. Flush mount brackets included.
1 PL-28II Center Speaker / Frequency Response	30Hz-23kHz
1 PL-28II Center Speaker / Sensitivity	98dB
1 PL-28II Center Speaker / Drivers	Two high power screen pressed long fiber 8″ woofers with heavy duty surrounds, one 6 1/2″ mid/high frequency aluminum dome horn with neodymium magnet
1 PL-28II Center Speaker / Features	Gold-Plated Binding Posts
1 PL-28II Center Speaker / Recommended Power	10-225 watts per channel RMS, 500 watts peak power
1 PL-28II Center Speaker / Impedance	Nominal 8 ohms
1 PL-28II Center Speaker / Dimensions	10″H x 25 1/4″W x 6 1/4″D
1 PL-28II Center Speaker / Weight	28 lbs. (12.7 kg.)
1 PL-28II Center Speaker / Warranty	Extended 8 Year Parts (excludes sustained cosmetic damages)
2 Pair PL-66 Bookshelf/Surround Speakers / Design	Two-way three-driver bookshelf/surround speakers. Flush wall mounts included.
2 Pair PL-66 Bookshelf/Surround Speakers / Frequency Response	40Hz-20kHz
2 Pair PL-66 Bookshelf/Surround Speakers / Sensitivity	96dB @ 1 watt, 1 meter
2 Pair PL-66 Bookshelf/Surround Speakers / Drivers	One 6 1/2″ high efficiency aluminum horn tweeter w/neodymium magnet, one 6 1/2″ screen pressed long fiber woofer with heavy duty surround, one 5″ x 7″ passive radiator for extended bass output.
2 Pair PL-66 Bookshelf/Surround Speakers / Features	Gold-Plated Binding Posts
2 Pair PL-66 Bookshelf/Surround Speakers / Recommended Power	10-175 watts per channel
2 Pair PL-66 Bookshelf/Surround Speakers / Impedance	8 ohms
2 Pair PL-66 Bookshelf/Surround Speakers / Dimensions	10″H x 14″W x 7 1/4″D
2 Pair PL-66 Bookshelf/Surround Speakers / Weight	30 lbs. Pair (13.6 kg.)
2 Pair PL-66 Bookshelf/Surround Speakers / Warranty	5 Year Parts
1 PL-200 II Subwoofer / Design	Front-firing 12″ long-throw powered subwoofer with dual flared front ports and state-of-the-art 1000-watt dynamic peak power BASH amplifier. AMPLIFIER FEATURES: Adjustable crossover (by-passable when adjusting crossover through a digital receiver), adjustable volume control, auto on/off with LED indicator and automatic signal sensing, gold-plated high-level inputs, both Dolby Pro Logic & Dolby Digital/DTS LFE inputs.
1 PL-200 II Subwoofer / Frequency Response	21Hz – 200Hz (+/- 3db)
1 PL-200 II Subwoofer / Sensitivity	110dB @ 30Hz
1 PL-200 II Subwoofer / Drivers	Heavy duty 12″ poly-injected woofer with high power magnet and long excursion surround.
1 PL-200 II Subwoofer / Recommended Power	Built-in-state-of-the-art BASH Amplifier, 1000 watts Dynamic Peak Output, 250 watts RMS Continuous
1 PL-200 II Subwoofer / Dimensions	17 1/4″H x 14 7/8″W x 19 1/2″D. Carton Dimensions: 24 x 19 x 21
1 PL-200 II Subwoofer / Weight	45 lbs.
1 PL-200 II Subwoofer / Warranty	Extended 8 years woofer, 5 years on amplifier and associated electronics
