Formula 5.1 FH56BAR-Wireless-F-12 System – 625W

Formula 5.1 FH56BAR-Wireless-F-12 System – 625W

5-Channel Patented Sound Bar & Wireless 500-Watt 12″ F-12 Subwoofer


MSRP: $1078/System

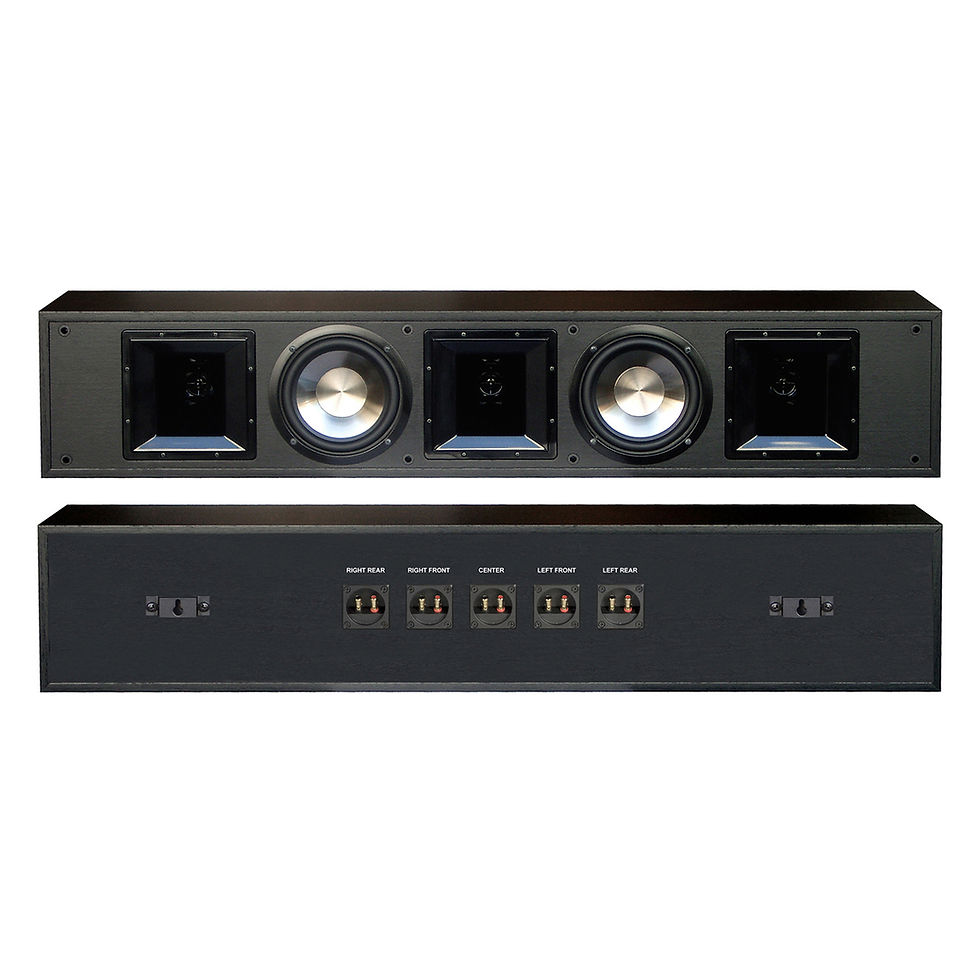

The patented Formula FH56-BAR sound bar incorporates an innovative state-of-the-art solution to deliver discrete multi-channel sound from one speaker. Unlike other “all-in-one” sound bars, the FH56-BAR has 5 discrete channels through a patented technology. This enables single drivers to reproduce more than one channel while combining with other drivers in creating a true lifelike expanded theater soundstage. The unique cabinet and patented driver design in the FH56-BAR deliver a precise focused center channel, an 8-foot soundstage for left and right front channels, and amazing rear channel effects with no physical speakers behind the listening area. The 5.1 FH56BAR combined with the F-12 subwoofer can challenge 5.1 channel surround systems selling for three times the price! Eliminate the clutter of speakers while still enjoying true 5-channel theater sound!


The top-rated Formula F-12 front-firing subwoofer incorporates a high current 475-watt peak amplifier designed by BASH Technology in combination with a 12″ injection molded long-throw woofer. It delivers undistorted bass down to 25Hz, even when being driven at the highest levels. Combined with the BIC WTR-SYS wireless kit included in this system, you can place your F-12 where it looks and sounds best without a bulky, expensive subwoofer cable! External antennas assist in offering a range of 80 feet unobstructed and up to 60 feet obstructed with no interference, delay, or dropouts.

  • Specifications

    1 FH56-BAR Sound Bar

    • Design: 625 watt 3 or 5 Discrete Channel Bar Speaker System with Wall Mounts
    • Frequency Response: 37Hz-23kHz
    • Sensitivity: 96dB @ 1 watt, 1-meter, high efficiency output to 116dB
    • Drivers:(2) 6 1/2″ injection molded woofers, (3) 6 1/2″ mid/high frequency horns, (2) 4 1/4″ side mounted surrounds.
    • Gold-Plated Terminals: YES
    • Recommended Power: 10- 125 watts RMS per channel, 625 watts peak power
    • Impedance: 8 ohms
    • Dimensions: 8″H x 43W x 7″D, Carton Dimensions: 48L x 13H x 12D
    • Weight: 35 Pounds
    • Finish: Black Laminate

    1 F-12 Subwoofer

    • Design: Heavy duty front-firing 12″ powered subwoofer with state-of-the art BASH designed amplifier.
    • FEATURES: Adjustable crossover, adjustable volume control, automatic signal sensing, high level inputs & outputs with gold-plated terminals, and both Dolby Pro Logic & Dolby Digital/DTS LFE inputs.
    • Frequency Response: 25Hz – 200Hz (+/- 3dB), adjustable crossover frequency range: 40Hz- 180Hz
    • Drivers: 12″ Heavy Duty Long-throw injection molded woofer with high power magnet
    • Power: Built-in-Amplifier Power- 150 Watt RMS, 475-Watt Dynamic Peak
    • Dimensions: 17″H x 14 3/4″W x 17 1/4″D, Carton Dimensions: 22 x 19 x 21
    • Weight: 40 lbs. Each, Carton Weight 42 lbs. Each

    1 WTR-SYS Transmitter/Receiver Wireless Kit -WORKS WITH ALL BIC SUBWOOFERS!

    • 4-Channel Wireless Audio Transmitter/Receiver System
    • External antennas assist in offering a range of 80’ unobstructed and up to 60’ obstructed with no interference, delay, or dropouts.
    • Wireless 20Hz-20kHz
    • No software required
    • SNR: 93dB
    • RF band: 2.4GHz
    • Super compact size & self-adhesive Velcro strips enable multiple placement options.
    • 1 1/8” H x 3 7/8” W x 3” D Each
    • Warranty: 1 Year on Wireless Components

    Included in this System:

    1 FH56-BAR sound bar, 1 F-12 subwoofer, 1 WTR-SYS wireless transmitter & receiver, 2 external antennas, 2 USB AC power adapters, 2 USB cords, 2 RCA to RCA stereo patch cables, 2 RCA “Y” adapter cables, 2 x 1/8″ (3.5mm) stereo to RCA cables, and self-adhesive Velcro strips.
